50 KN.M Torque Limit NC38 Thread HDD Drill Pipe
Product Detail
Model No.:DIA 114
Production Capacitenough
Delivery Date:30 days after payment
trenchless drill rod:HDD
Means of Transport:Ocean,Land,Air
Packing:with iron
Application:Others
Brand Name:Long way
Drill pipe joints adopt the double ledge (double top) structure. Such structure can enhance the tightness of joints so that the pressure of the mud could realize non-leakage half-way. Greatly reduce the resistance to pilot drilling and back, using this structure improves the torsional strength of drill pipe so that the box thread will not deformed.
Product Specifications
| Diameter | Wall Thickness | Length | Weight | Tool Joint OD | Thread | Steel Grade | Torque Limit | Min.Bend Radius |
| (mm) | (in) | (mm) | (in) | (m) | (ft) | (Kg) | (mm) | (in) | | | (KN.m) | (Lb.ft) | (m) | (ft) |
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 162 | 127 | 5 | NC38
NC40 | G | 50 | 36900 | 98 | 321.52 |
| | S | 64 | 47232 | 90 | 295.28 |
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 |
Product series
| Brand | Model | Length(shoulder-
to-shoulder) | Outside
Diameter | Tool Joint OD | Wall Thickness | Steel Grade |
| CASE | Case6010 | 120"±0.5" | 1.9"±0.031" | 2.25*±0.16" | 0.24" | S135 |
| Case6030 | 120"±0.5" | 2.375"*0.031* | 2.625"±0.16" | 0.28" | S135 |
| VERMEER | D10X15 | 120"±0.5" | 1.66"±0.31" | 1.88"±0.16" | 0.24" | S135 |
| D16x20/D18x22 | 120"±0.5" | 1.9"±0.31" | 2.125"±0.16" | 0.24" | S135 |
| D24X40F/D24X40LW | 120"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 |
| D33X44ID40x40 | 180"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 |
| D50X100 | 180"±0.5" | 2.875"±0.31" | 3.25"±0.16" | 0.362" | S135 |
| D80X100 | 180"±0.5" | 3.5"±0.31" | 3.625"±0.16" | 0.368 | S135 |
| D100X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 |
| D130X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 |
DITCH
WITCH | JT1720/1720V | 118"±0.5" | 2.063"±0.31" | 2.5" | 0.27" | S135 |
| JT2020 | 118"±0.5" | 2.063"±0.31" | 2.625* | 0.27* | S135 |
| JT2720/2720V | 118"±0.5" | 2.375"±0.31" | 2.75* | 0.28" | S135 |
| JT2720M1 | 118"±0.5" | 2.375"±0.31" | 3 | 0.28% | S135 |
| JT4020 | 117.2"±0.5" | 2.875"±0.31" | 3.25" | 0.362* | S135 |
| JT4020M1 | 117.2"±0.5" | 2.875"±0.31" | 3.5" | 0.362* | S135 |
| JT7020 | 117.2"±0.5" | 3.5"±0.31" | 4" | 0.368* | S135 |
| Diameter | Wall Thickness | Length | Weight | Tool Joint OD | Thread | Steel Grade | Torque Limit | Min.Bend Radius |
| (mm) | (in) | (mm) | (in) | (m) | (ft) | (Kg) | (mm) | (in) | | | (KN.m) | (Lb.ft) | (m) | (ft) |
| 50 | 2 | 6.5 | 0.256 | 2 | 6.56 | 17 | 53 | 2.09 | ZX50 | G | 2.9 | 2140 | 38 | 124.67 |
| 2.5 | 8.20 | 20 | S | 3 | 2214 | 30 | 98.43 |
| 60 | 2 3/8" | 7.1 | 0.28 | 2 | 6.56 | 23 | 68 | 2.68 | ZX60 | G | 6 | 4428 | 42 | 137.79 |
| 3 | 9.84 | 32 | S | 6.3 | 4650 | 33 | 108.27 |
| 73 | 2 7/8" | 8 | 0.315 | 3 | 9.84 | 43 | 78 | 3.23 | NC23 | G | 12 | 8856 | 58 | 190.29 |
| 4 | 13.12 | 57 | S | 13 | 9594 | 45 | 147.69 |
| 76 | 3 | 9 | 0.354 | 3 | 9.84 | 56 | 88 | 3.47 | NC26 | G | 14 | 10332 | 62 | 203.41 |
| 4 | 13.12 | 71 | S | 16.5 | 12177 | 56 | 183.73 |
| 83 | 3 1/4* | 9 | 0.354 | 3 | 9.84 | 57 | 92 | 3.62 | D80
NC26 | G | 16.8 | 12398 | 73 | 239.50 |
| 4.5 | 14.76 | 79 | S | 18 | 13284 | 65 | 213.26 |
| 89 | 3 1/2" | 9.35 | 0.368 | 4.5 | 14.76 | 99 | 105 | 4.13 | NC31 | G | 22.3 | 16457 | 80 | 262.47 |
| 6 | 19.69 | 128 | S |
| 102 | 4 | 10 | 0.394 | 6 | 19.69 | 160 | 123 | 4.41 | NC38 | G | 38 | 28044 | 90 | 295.28 |
| S | 48 | 35424 | 82 | 296.03 |
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 162 | 127 | 5 | NC38
NC40 | G | 50 | 36900 | 98 | 321.52 |
| | S | 64 | 47232 | 90 | 295.28 |
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 |
Drill pipe usage notes:
1. New drill pipe should be pasted thread oil before connection.
2. Make up and break at least 3 times before drilling.
About us
LangFang Baiwei Drill Co.,Ltd located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Area. Langfang Hebei.
Our company is a drilling tools manufacturing enterprisewith integration of design, geological, well, double wall, oil, auger and other special drilling pipes. And trenchless special drilling tools such as pilot guide bits,swivels, reamers, sub saver, pneumatic pipe rammer, pipe bursting machine.
Product Tags:
|
|

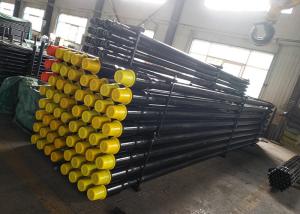

NC38 5 Inch Drill Pipe Images
|
